STM32F7xxx Discovery Touch Sensor [詳解]

#include "sysconfig.h"
#include "device.h"
#include "interrupt.h"
#include "device/video_ioctl.h"
#include "device/ts_ioctl.h"
#include "timer.h"
#include "tkprintf.h"
#include "sysevent.h"
#include "task/syscall.h"
#include "dkprintf.h"

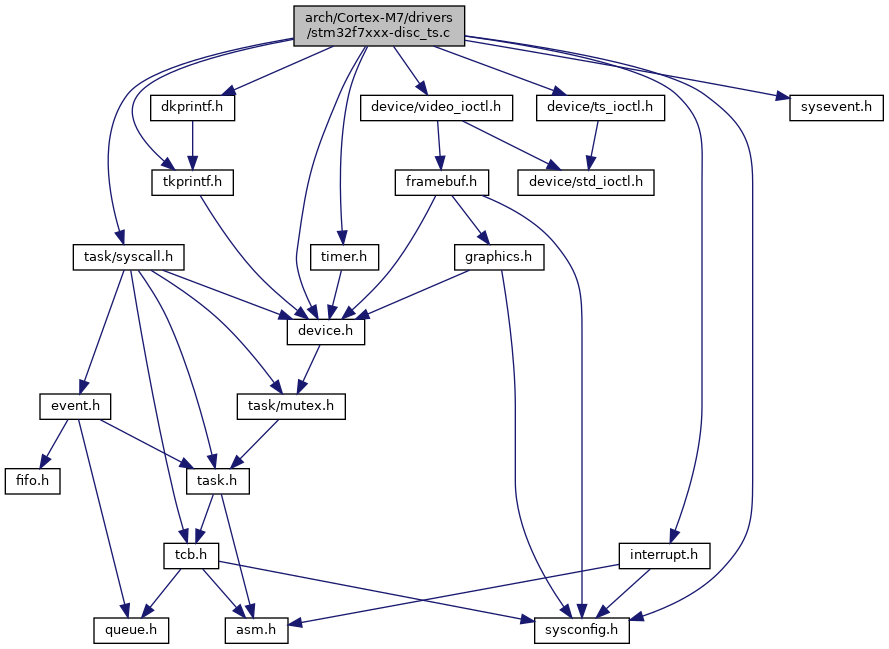

stm32f7xxx-disc_ts.c の依存先関係図:

[ソースコード]

マクロ定義
#define	LCD_WIDTH GSC_GRAPHICS_DISPLAY_WIDTH
	LCD幅ドット数

#define	LCD_HEIGHT GSC_GRAPHICS_DISPLAY_HEIGHT
	LCD高さドット数

#define	MOVEEVENTINTERVAL 20
	EVT_TOUCHMOVEの最小送信間隔

#define	MAX_TS_EVENT_QUEUE 4

#define	SIZEOFSTACK (1024*4)

関数
static void	inthdr_exti15_10 (unsigned int intnum, void *sp)

static int	ts_task (char *arg)

static int	ts_register (struct st_device dev, char param)

変数
static struct st_event	ts_evq

static unsigned char	ts_data [MAX_TS_EVENT_QUEUE]

static struct st_mutex	ts_mutex

static unsigned short	levent

static unsigned int	ltime

static unsigned short	lpos_x

static unsigned short	lpos_y

static struct st_tcb	tcb

static unsigned int	stack [SIZEOFSTACK/sizeof(unsigned int)]

const struct st_device	ts_device

詳解

STM32F7xxx Discovery Touch Sensor

日付: 2017.02.05

著者: Takashi SHUDO

stm32f7xxx-disc_ts.c に定義があります。

変数詳解

◆ ts_device

const struct st_device ts_device

初期値:

= {
        .name           = DEF_DEV_NAME_TS,
        .explan         = "STM32F7xxx-Disc Touch Sensor",
        .mutex          = &ts_mutex,
        .register_dev   = ts_register,
}

stm32f7xxx-disc_ts.c の 152 行目に定義があります。
