STM32F746G-Discovery LCD ドライバ [詳解]

#include "device.h"
#include "device/video_ioctl.h"
#include "timer.h"
#include "tkprintf.h"
#include "graphics.h"
#include "stm32746g_discovery_lcd.h"

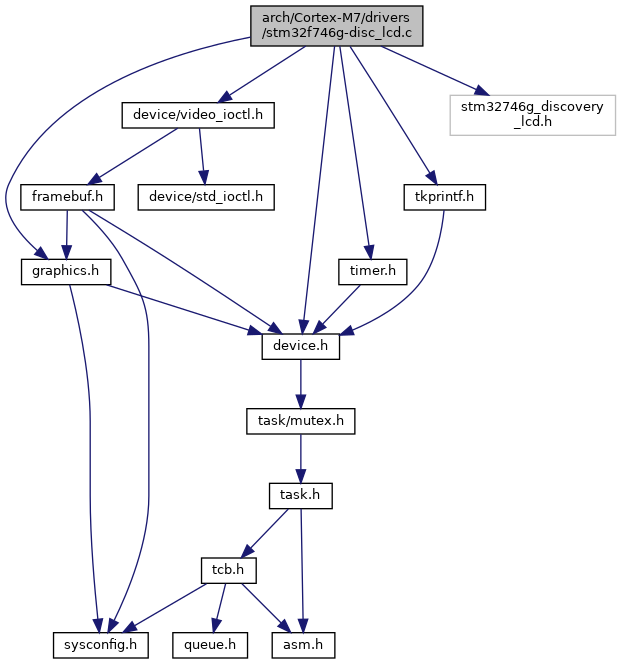

stm32f746g-disc_lcd.c の依存先関係図:

[ソースコード]

マクロ定義
#define	LCD_WIDTH 480

#define	LCD_HEIGHT 272

#define	__ATTR_FRAMEBUFFER __attribute__ ((section(".extram"))) __attribute__ ((aligned (4)))

関数
static void	init_framebuf (void)

static int	lcd_register (struct st_device dev, char param)

static int	lcd_ioctl (struct st_device dev, unsigned int com, unsigned int arg, void param)

変数
unsigned char lcd_f_buffer_main [LCD_WIDTH LCD_HEIGHT 2]	__ATTR_FRAMEBUFFER

static struct st_video_info	lcd_info

const struct st_device	lcd_device

詳解

STM32F746G-Discovery LCD ドライバ

日付: 2017.02.12

著者: Takashi SHUDO

stm32f746g-disc_lcd.c に定義があります。

変数詳解

◆ lcd_device

const struct st_device lcd_device

初期値:

= {
        .name           = DEF_DEV_NAME_VIDEO,
        .explan         = "STM32F746G-Discovery LCD",
        .info           = (void *)&lcd_info,
        .register_dev   = lcd_register,
        .ioctl          = lcd_ioctl,
}

stm32f746g-disc_lcd.c の 97 行目に定義があります。

◆ lcd_info

struct st_video_info lcd_info

static

初期値:

= {
        .type           = VIDEOTYPE_FRAMEBUF,
        .width          = LCD_WIDTH,
        .height         = LCD_HEIGHT,
        .color_depth    = VCOLORDEP_16,
        .frame_num      = 2,
        .frame_buf_ptr  = { 0, 0 },
        .mem_size       = 0,
}

stm32f746g-disc_lcd.c の 87 行目に定義があります。
